Make and Model of Oven Used in This Video
Hotpoint DU2540WH (61022940000)
Hotpoint DU2540WH (769991022942)
Part Used in This Video
Indesit Oven Thermostat Clip Spring
1. Remove old thermostat clip spring

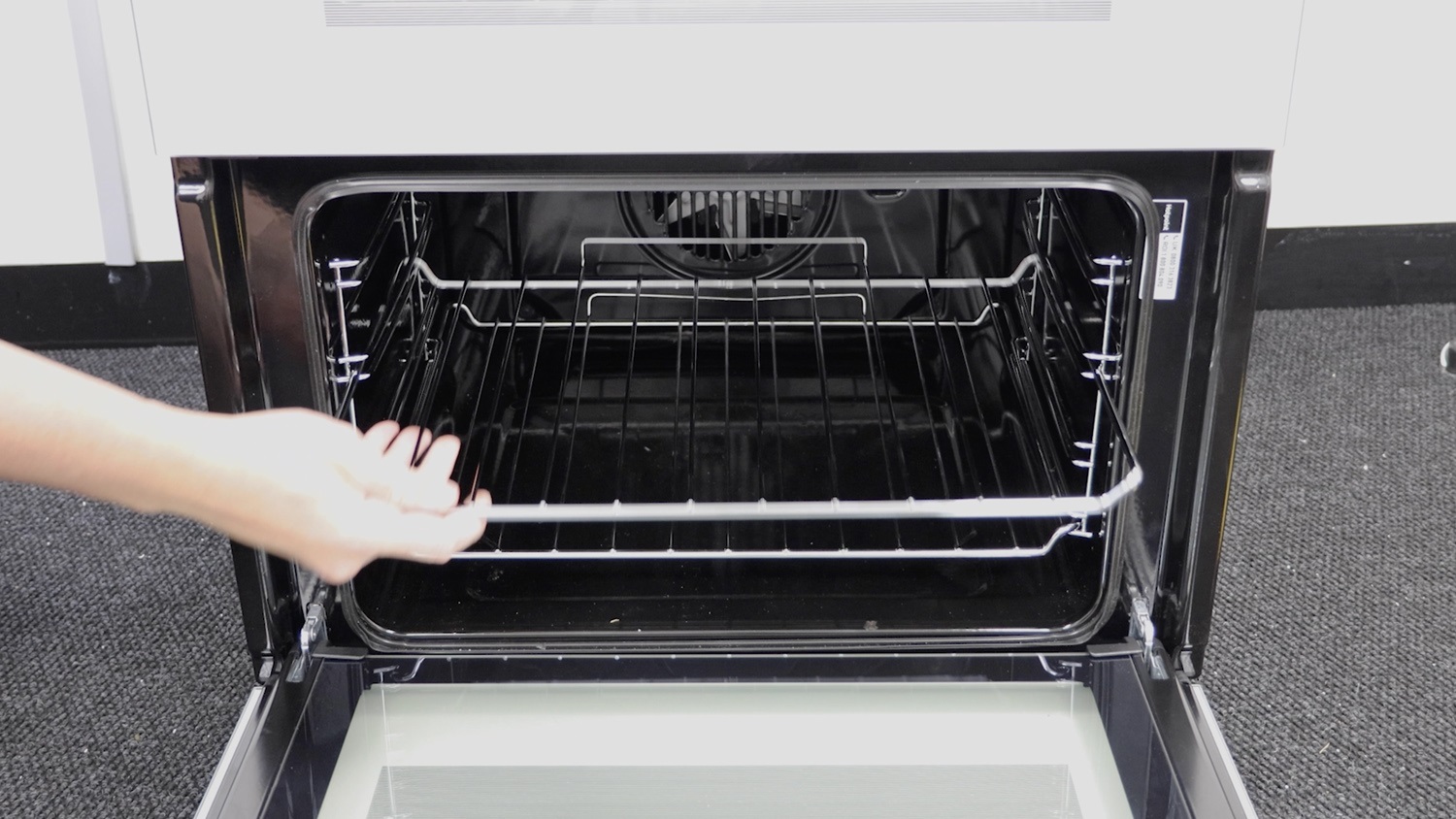

Remove any racks and trays from the bottom oven.

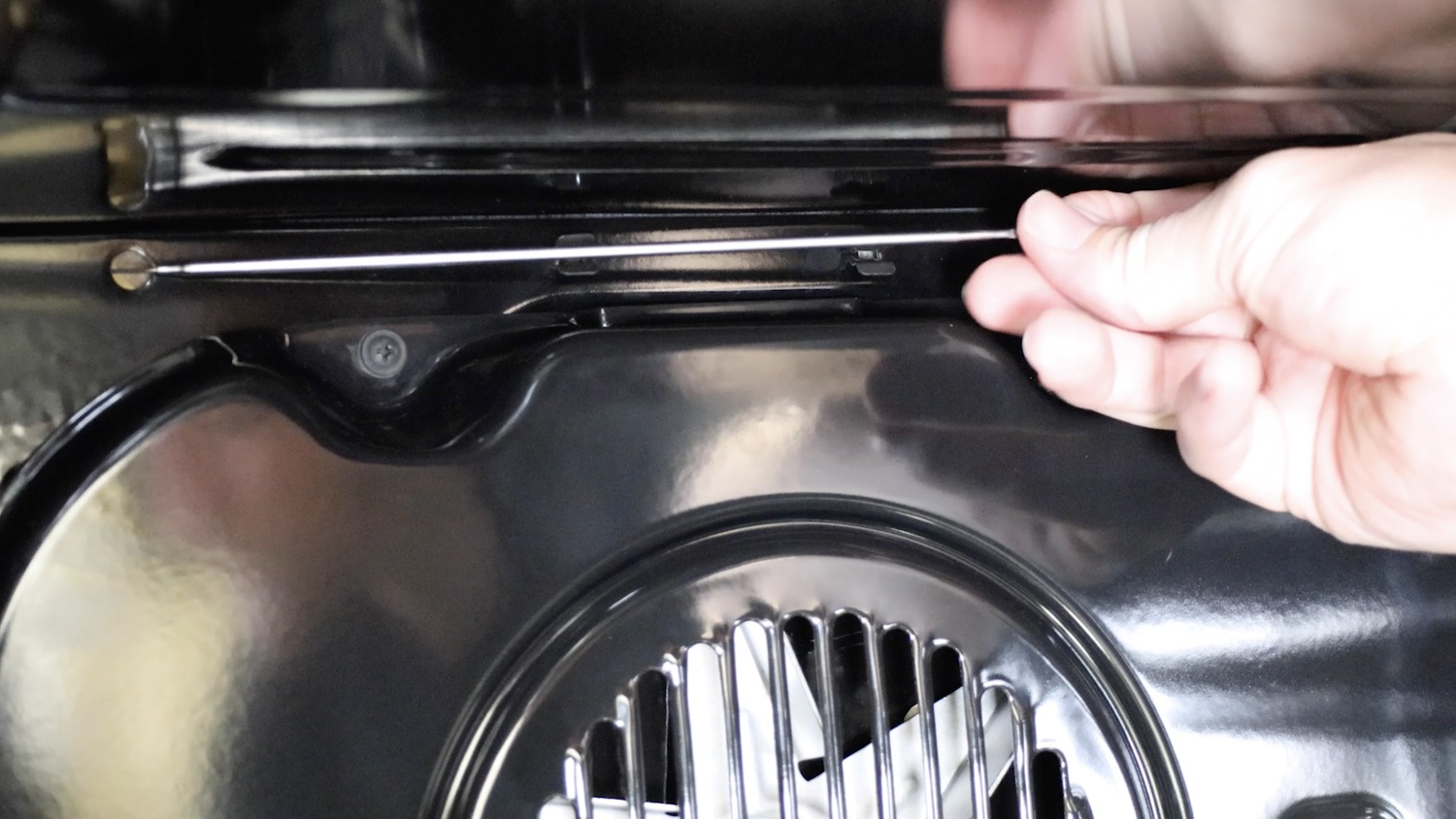

Then, carefully unclip the thermostat capillary tube from the back of the oven.

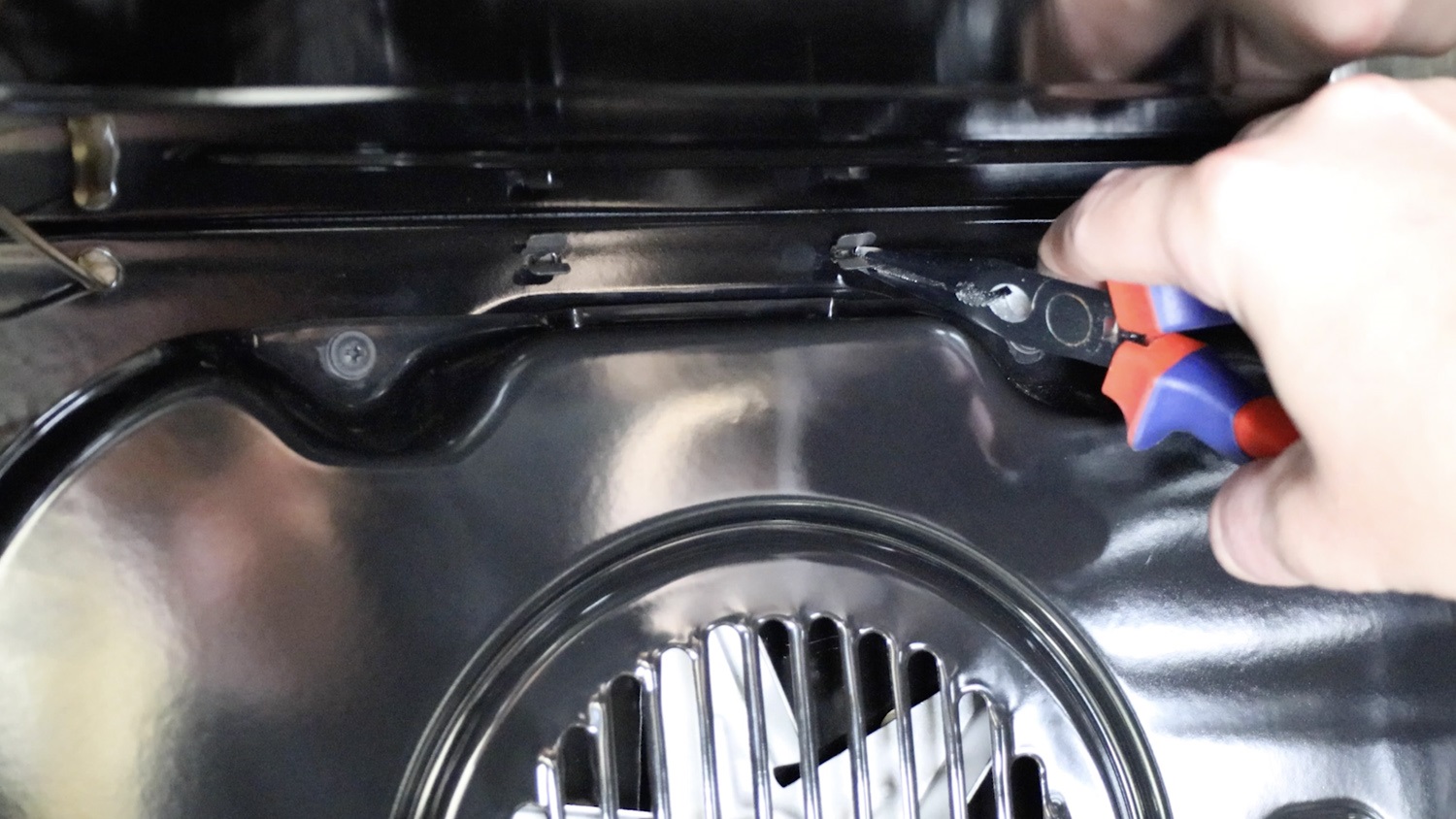

Either by hand or with your long-nose pliers, remove the thermostat clip spring that needs replacing.
2. Install new thermostat clip spring

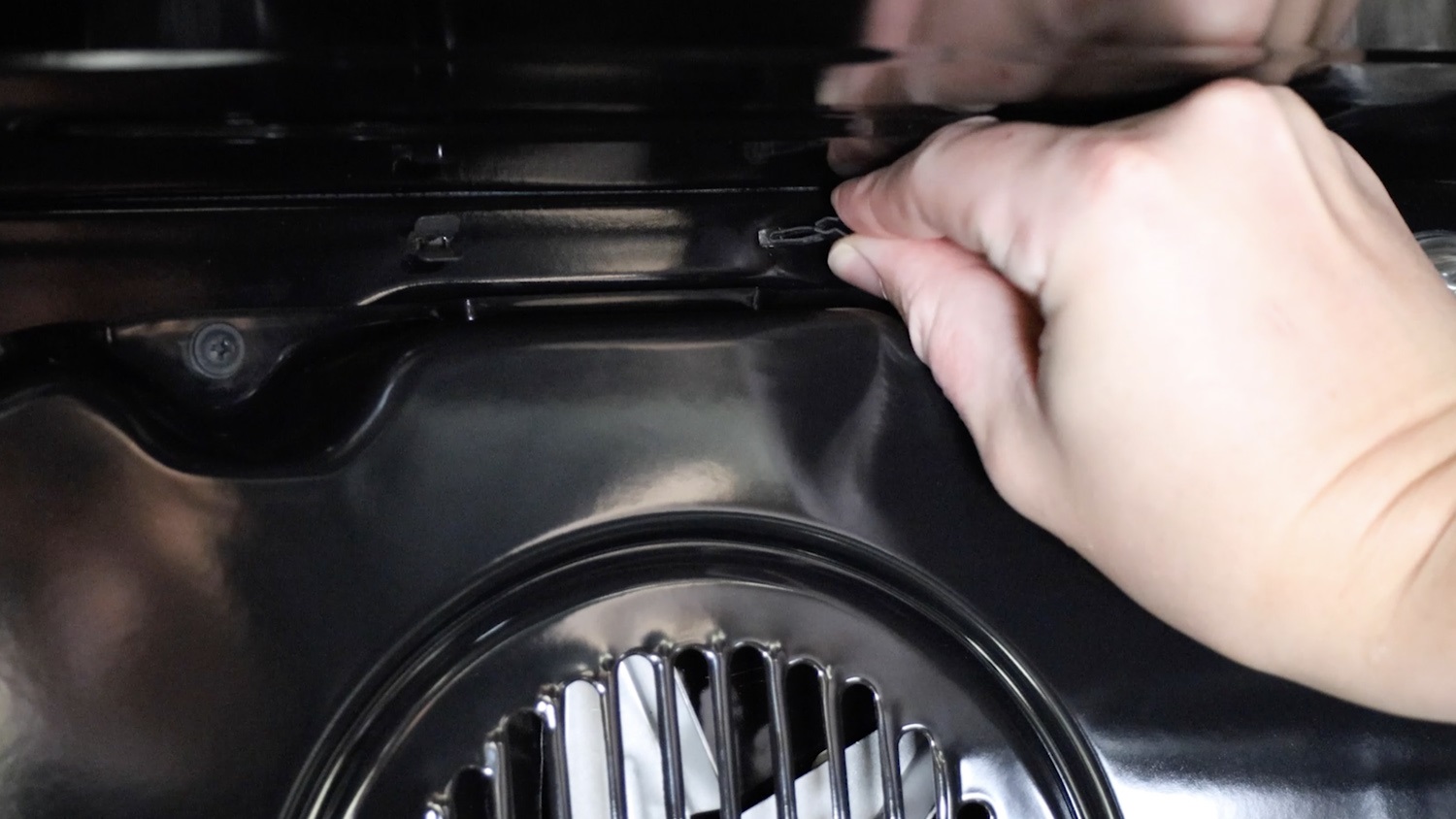

Now with your new thermostat clip spring, simply slot it in the hole as shown. Make sure it’s the correct way for the thermostat capillary tube to attach.

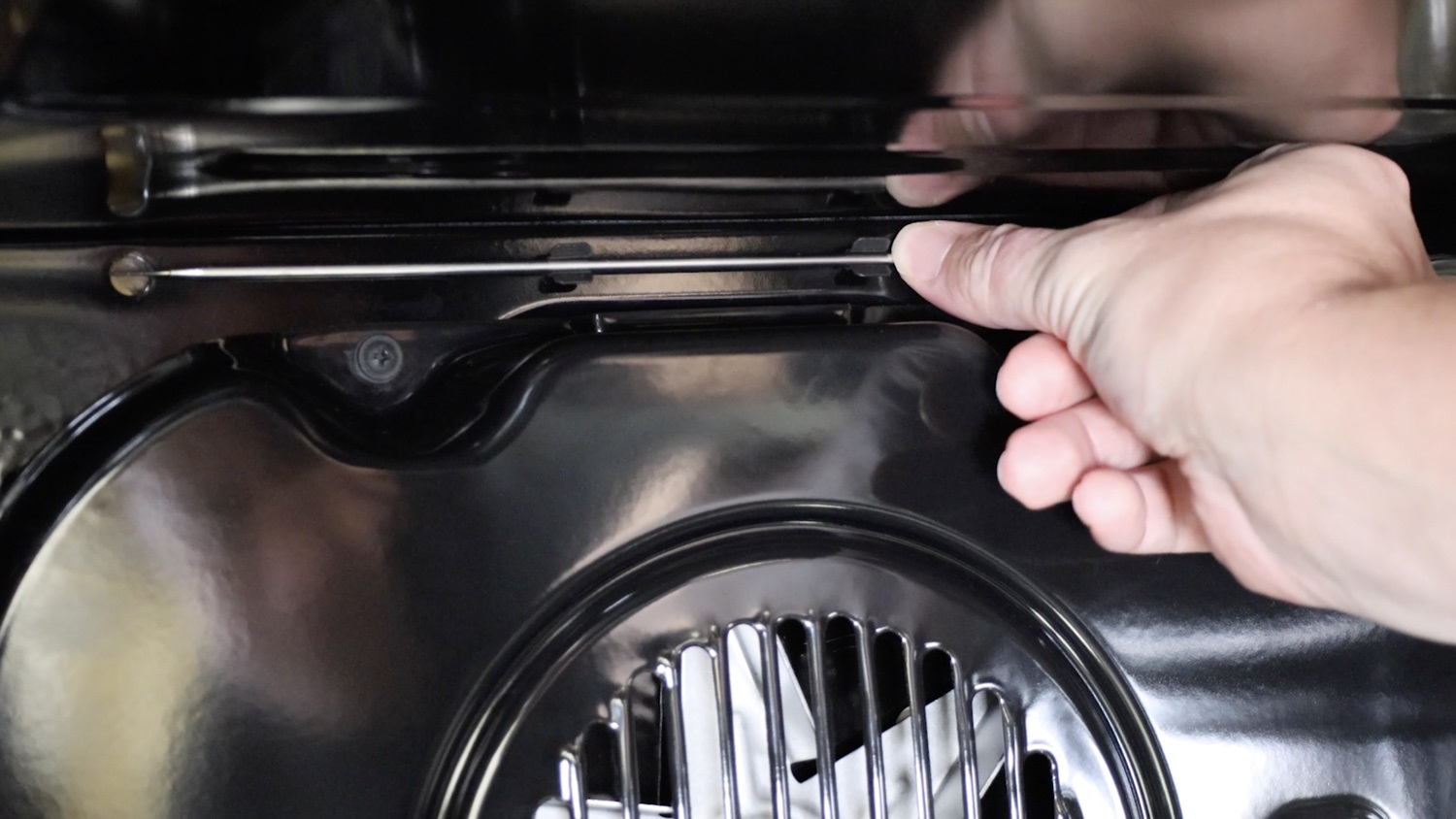

Then re-attach the thermostat capillary tube, making sure it’s connected in place.

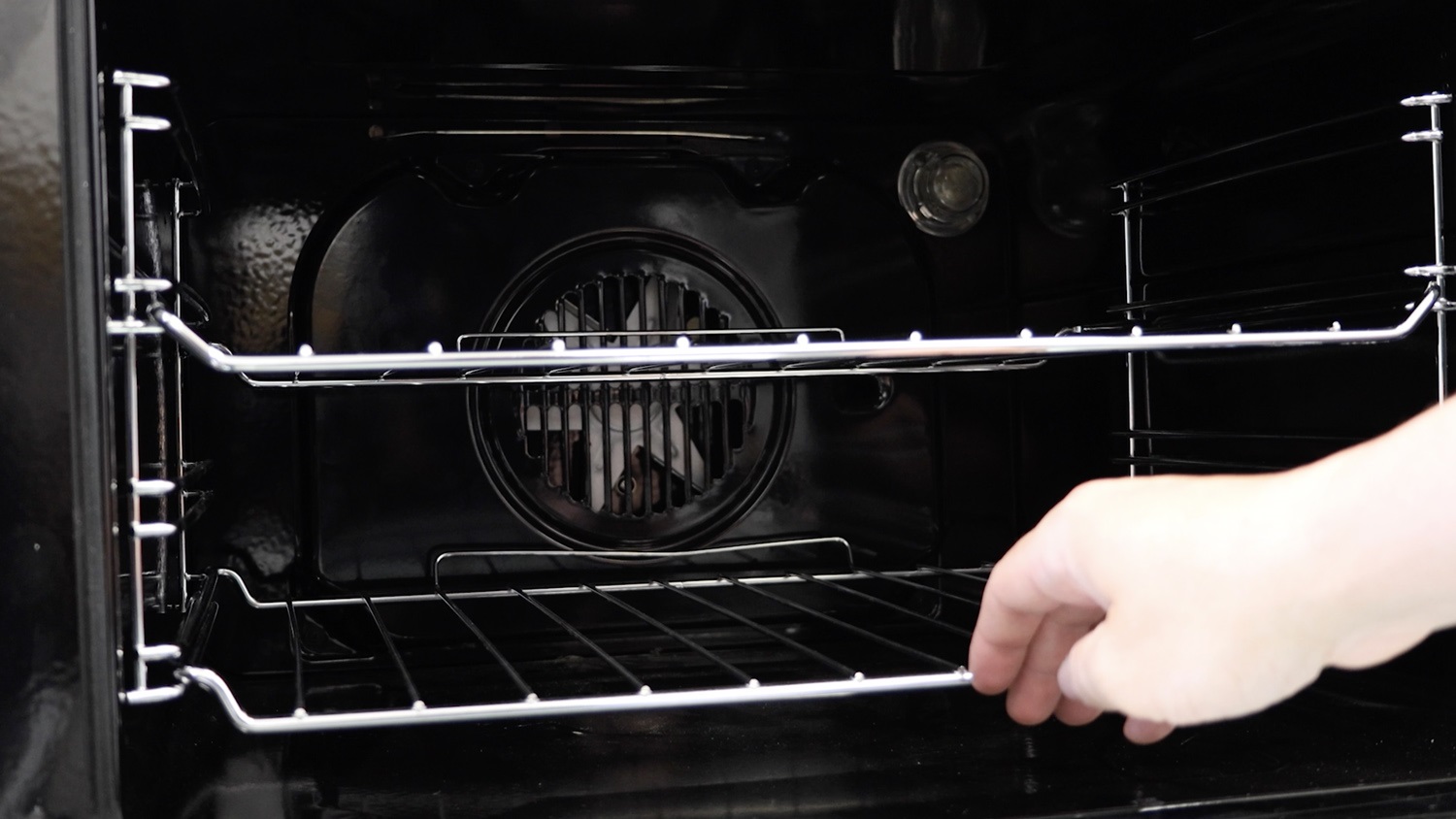

Re-insert any racks and trays you removed.
That’s it, your new thermostat clip spring is all set to go.
