Make and Model of Oven Used in This Video
Hotpoint DU2540WH (61022940000)
Hotpoint DU2540WH (769991022942)
Part Used in This Video
Hotpoint Oven Glass Door Seal1. Remove door trim
Note. This is the same process for both the top oven glass door seal and the bottom oven glass door seal.

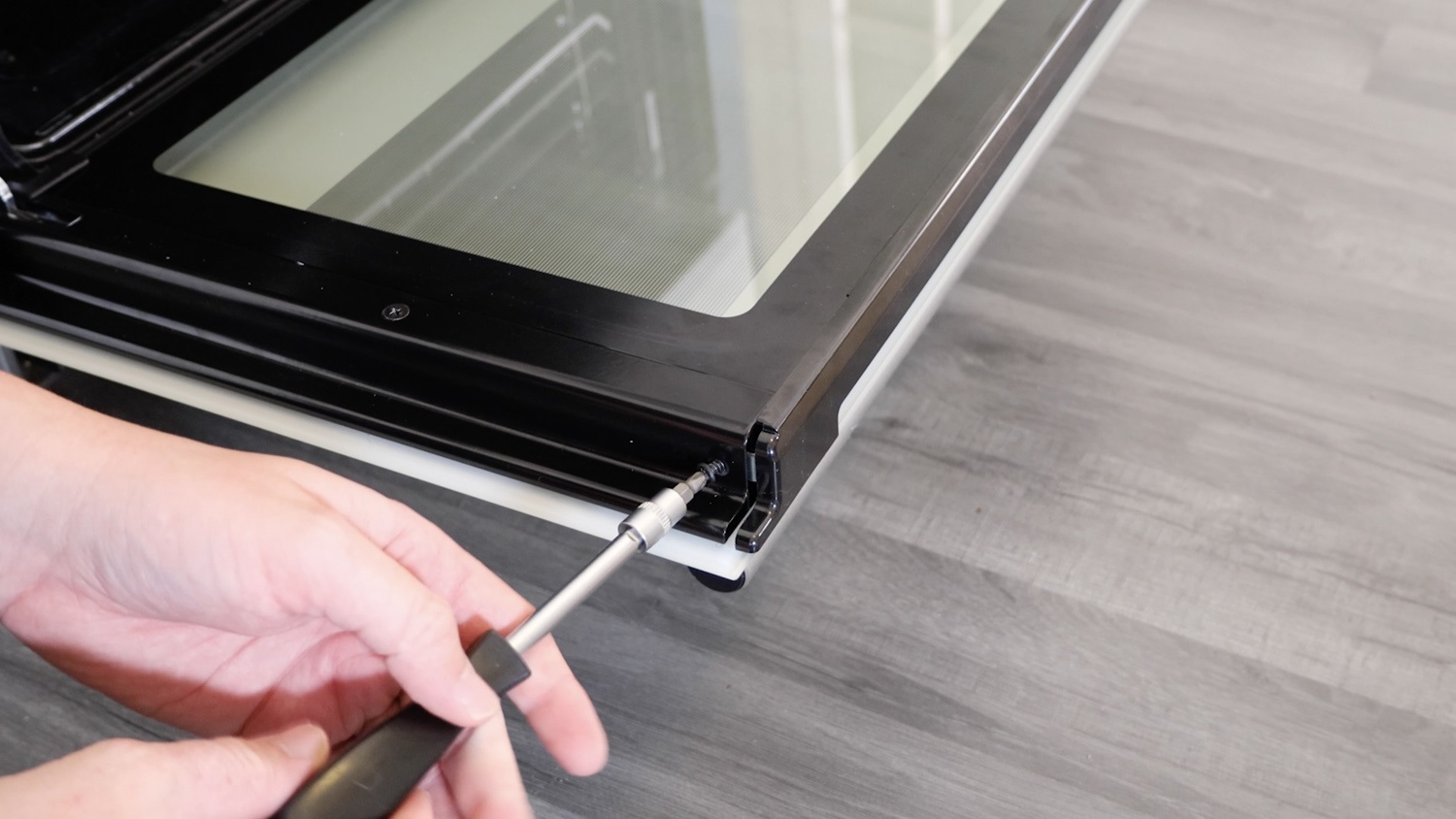

Remove the screw found on either side of the door.

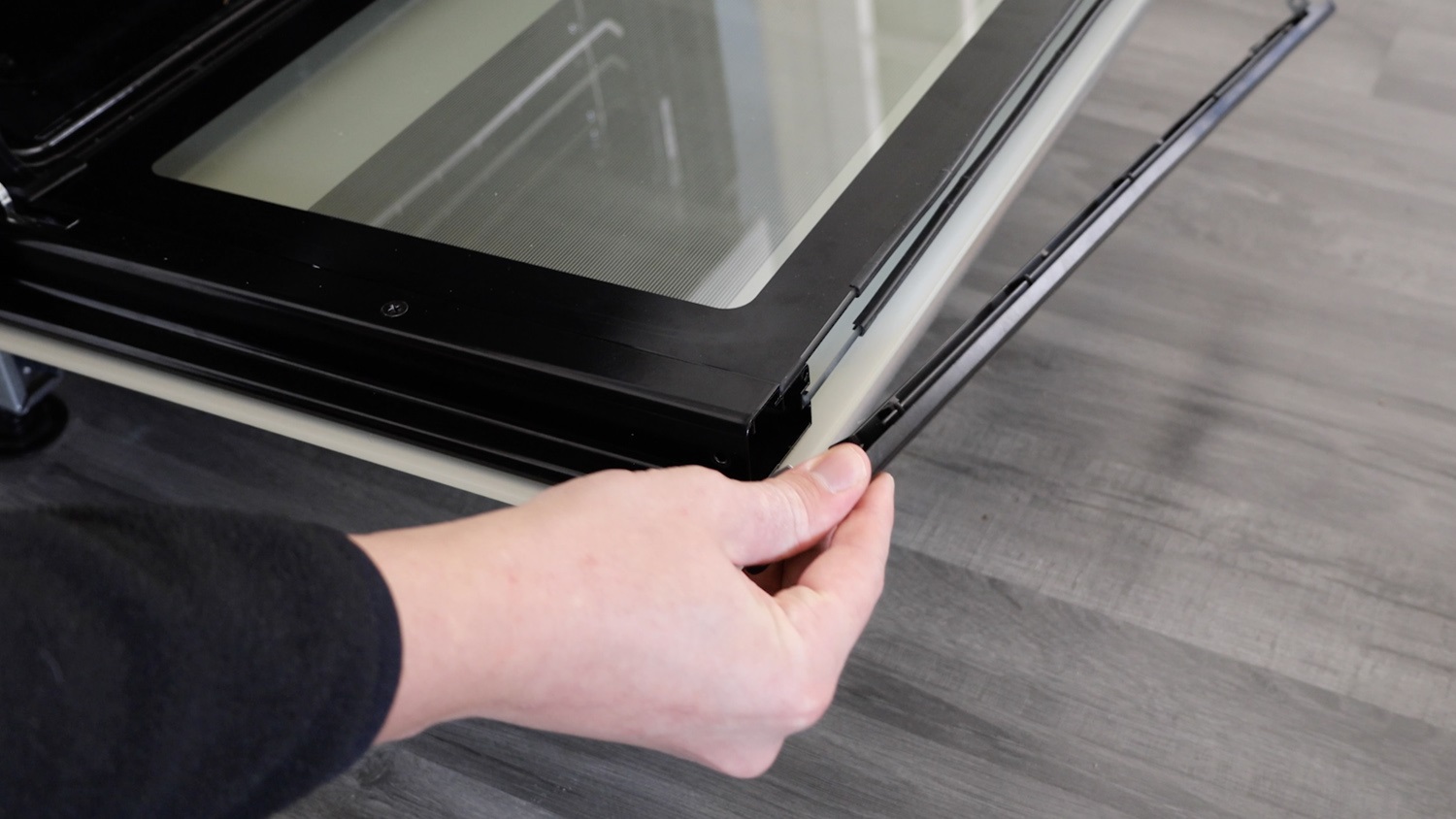

Remove the plastic trim, don’t worry if the fixing brackets fall out, but keep those, the trim and screws to one side.
2. Remove old door seal

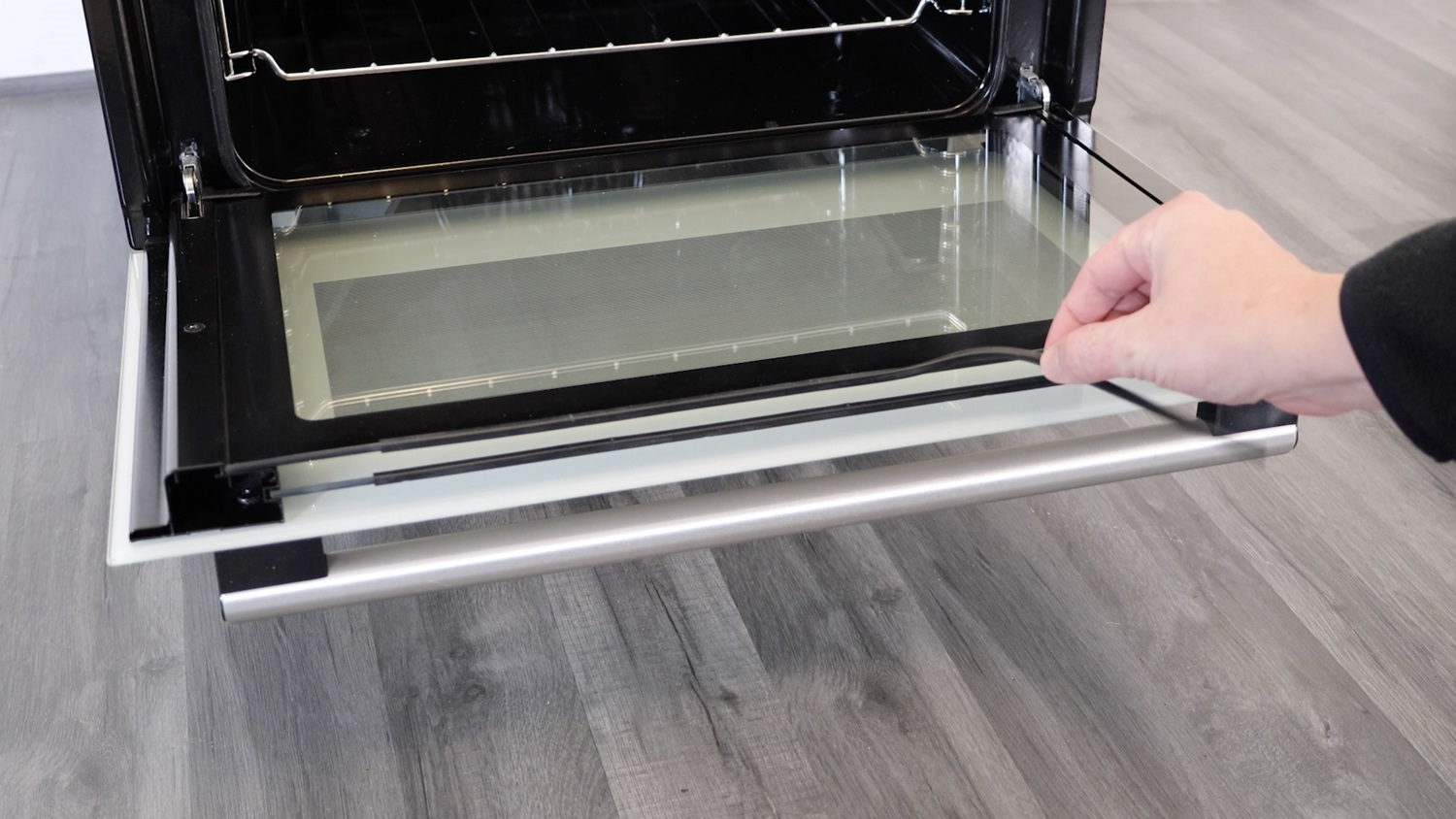

Remove the door seal that needs replacing.
3. Install new door seal

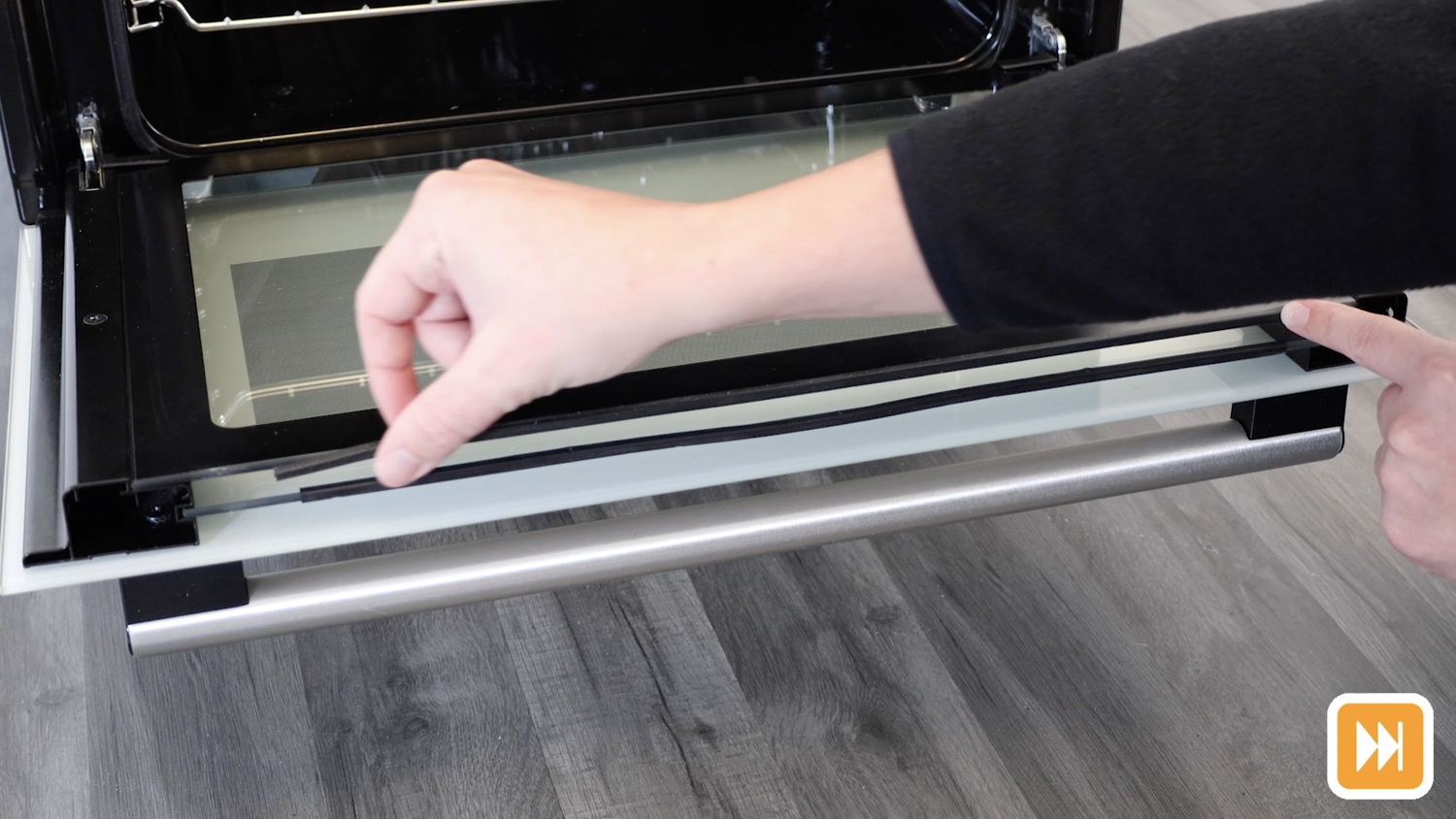

To install the new glass door seal, attach it as shown, making sure it’s sitting flush with the glass.
4. Re-attach door trim

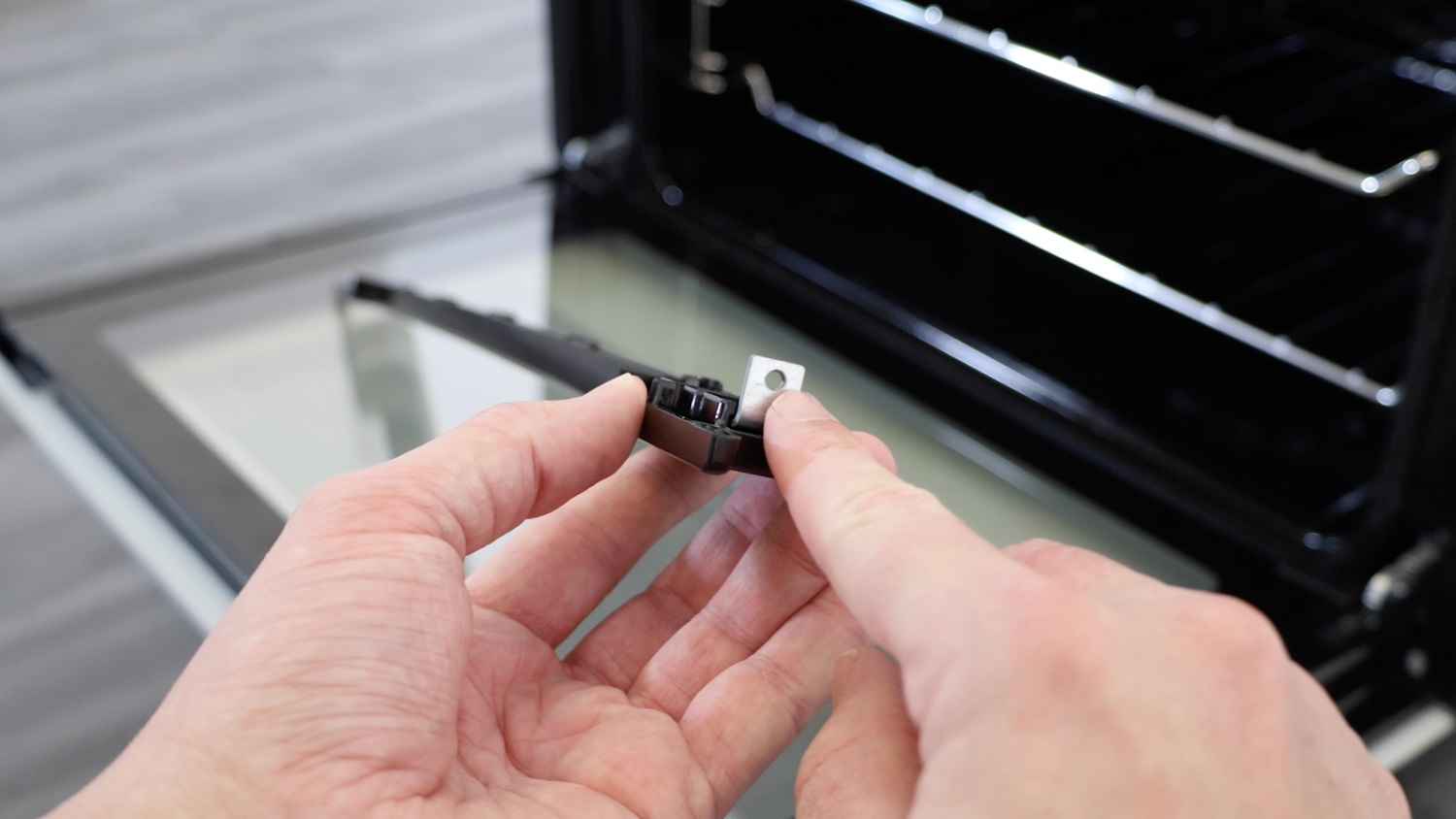

When attaching the fixing brackets to the plastic trim, make sure they’re the correct way round with the hole that goes into the plastic trim, not having any thread. The hole that’s left for the screw, doing so.

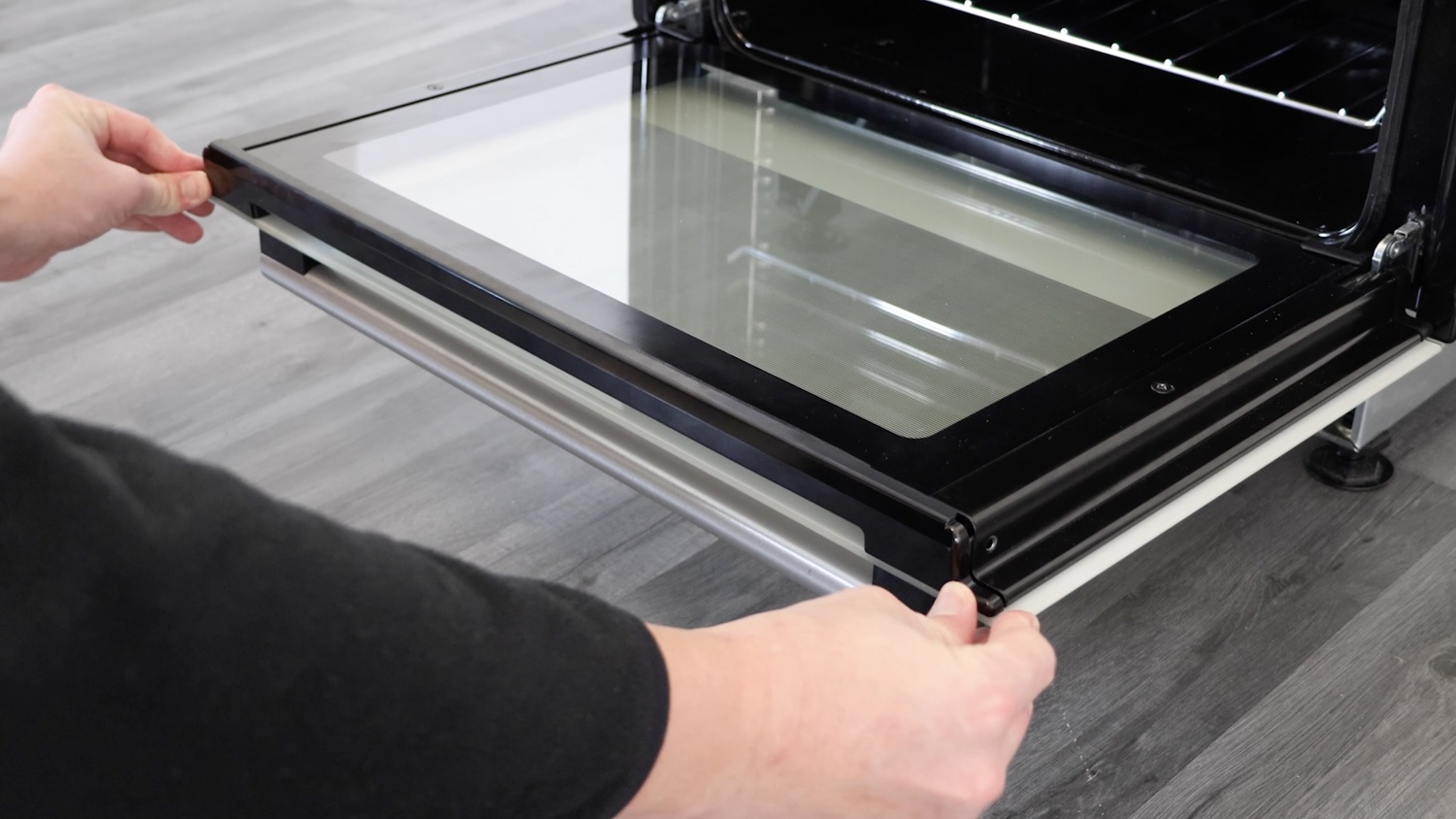

When re-attaching the plastic trim, make sure the seal(s) are correctly on the glass.

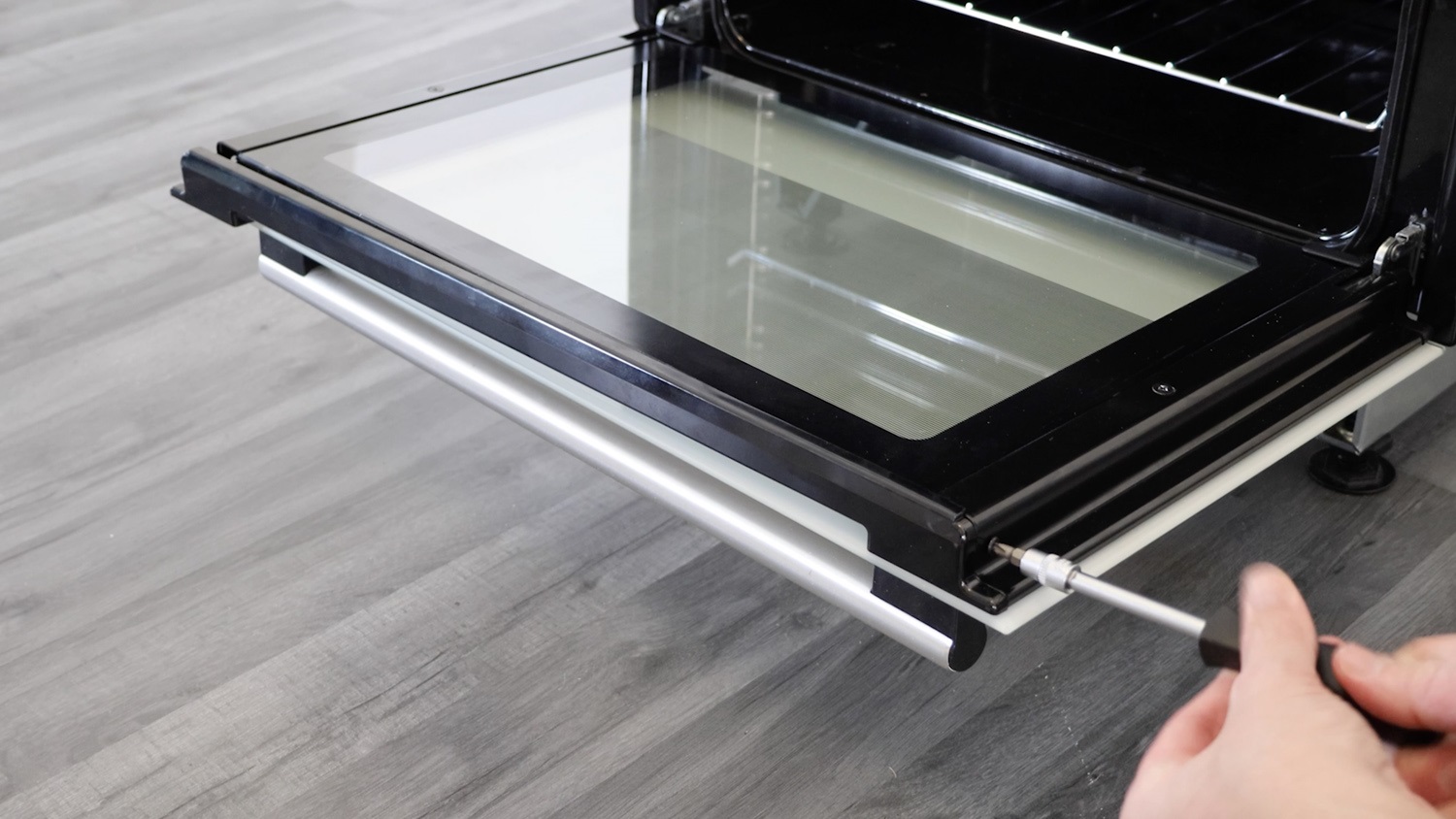

Re-screw the screw on either side of the door.
And that’s it, your new oven glass door seal is all set to go.
