Make and Model of Oven Used in This Video
Hotpoint DU2540WH (61022940000)
Hotpoint DU2540WH (769991022942)
Part Used in This Video
Hotpoint Oven Bottom Door Inner Glass
1. Remove old door inner glass

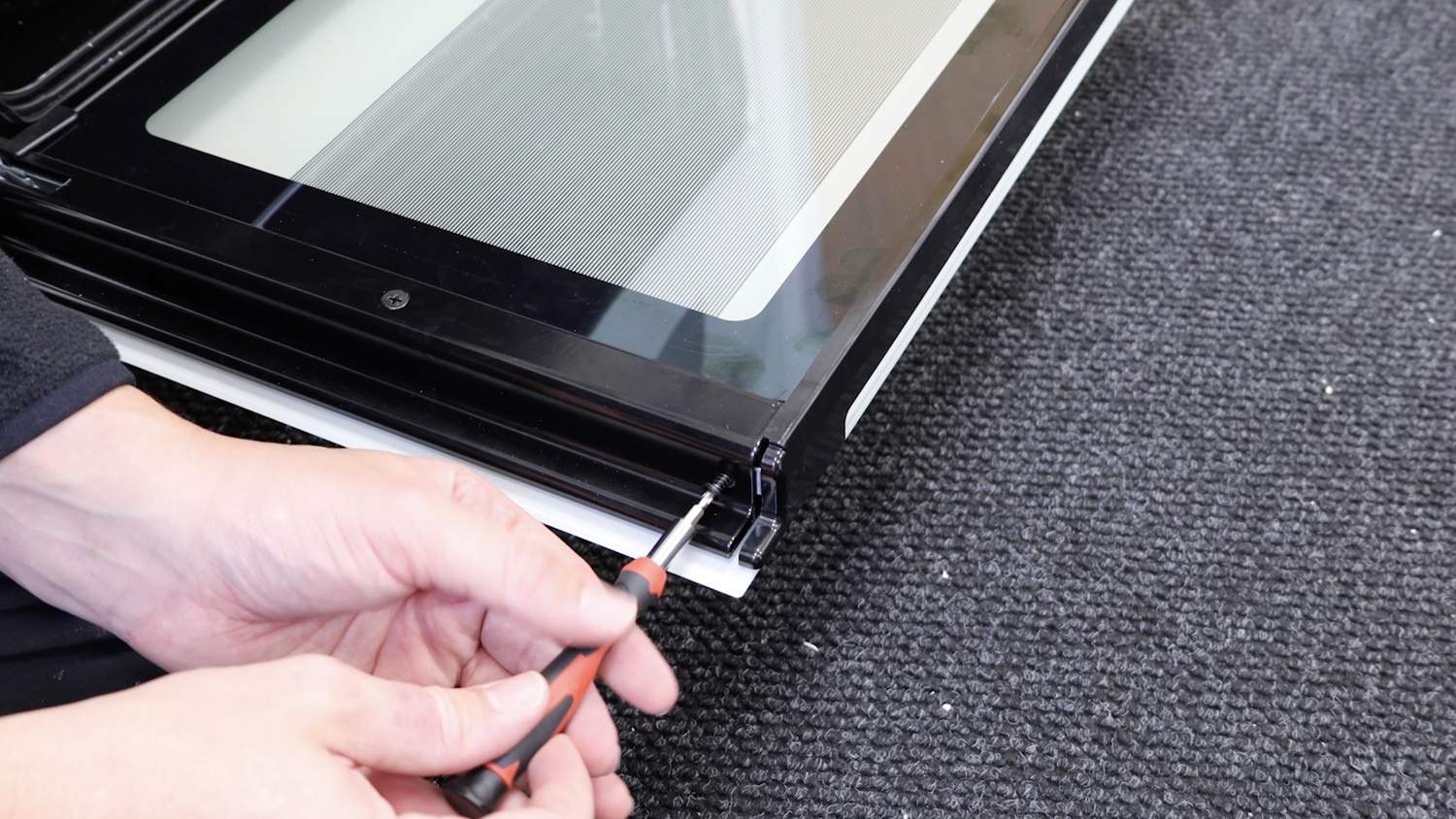

Remove the screws on either side of the door.

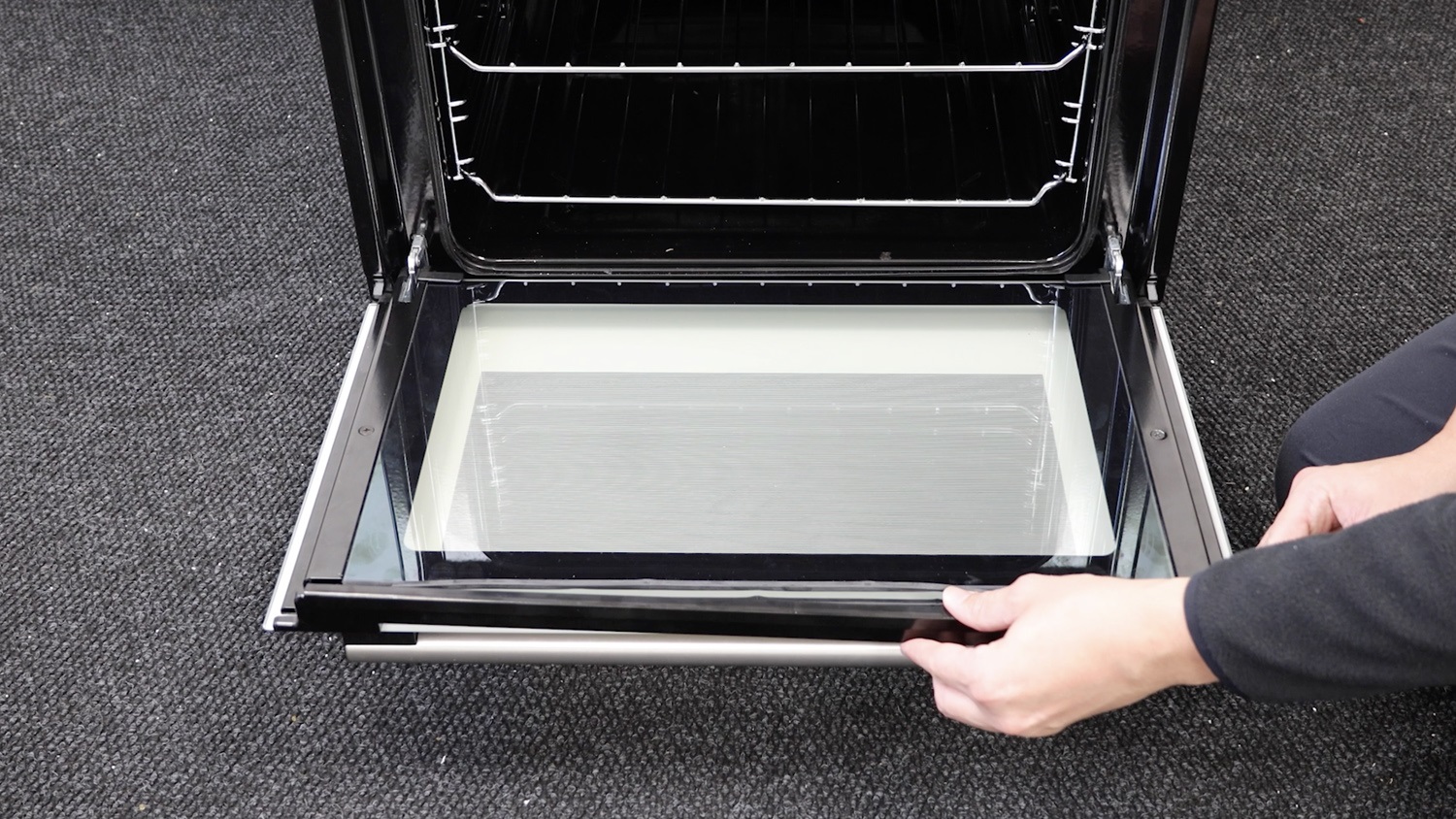

Remove the trim and place this to one side.

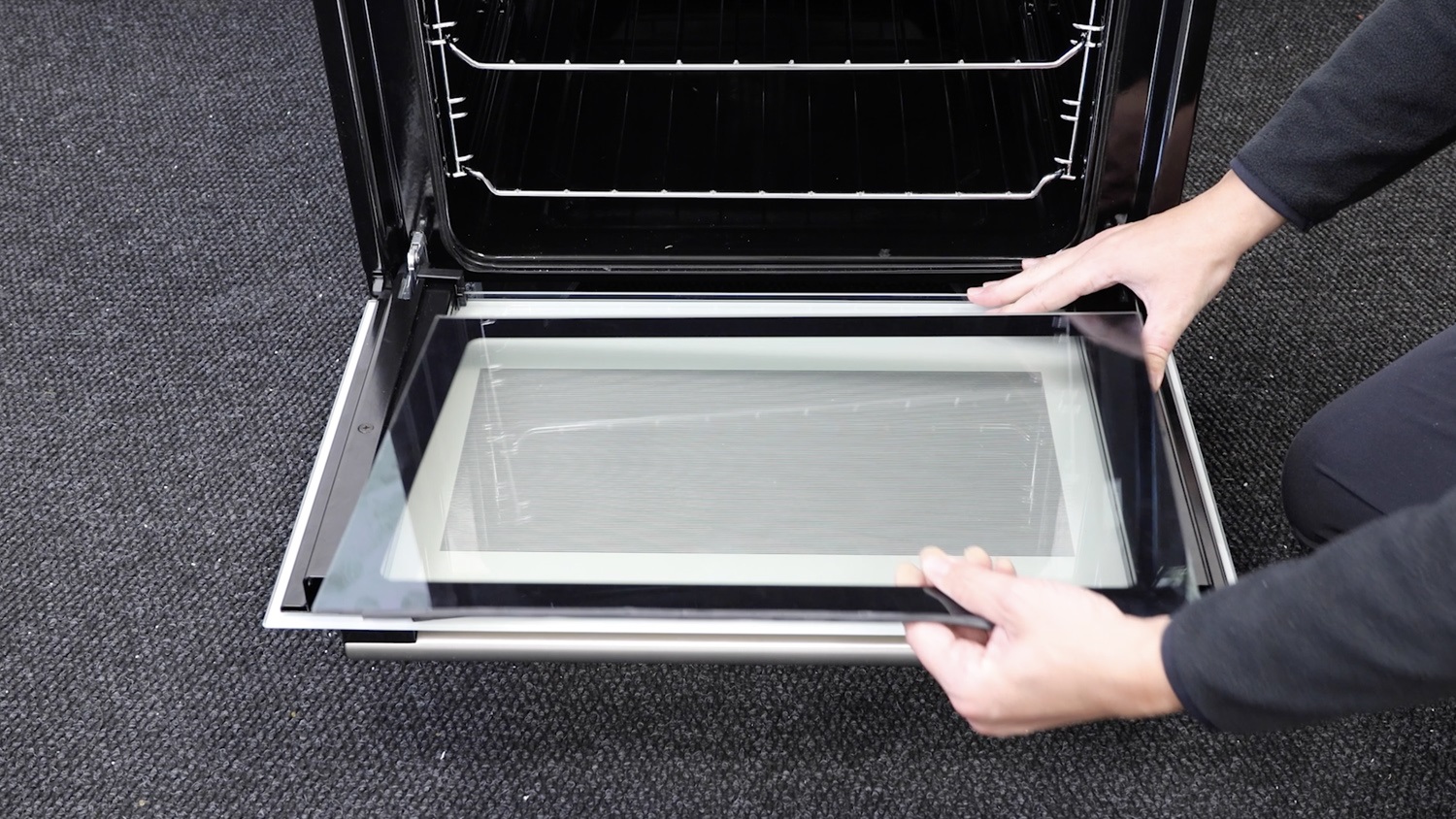

Carefully remove the existing inner glass from the bottom door. A quick warning, the door may begin to close due to the weight reduction.
2. Install new door inner glass

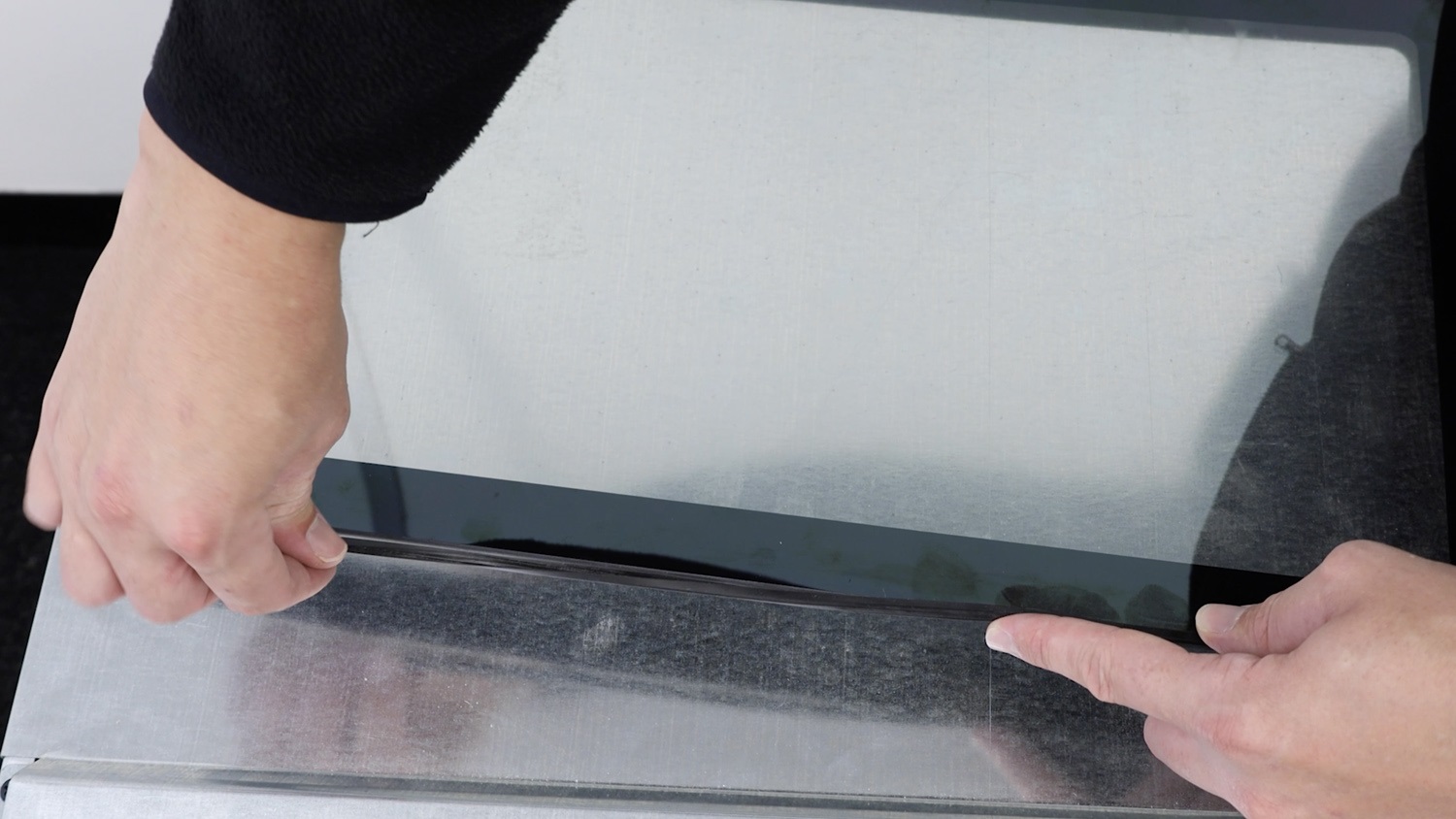

With your new inner glass, attach the seal.

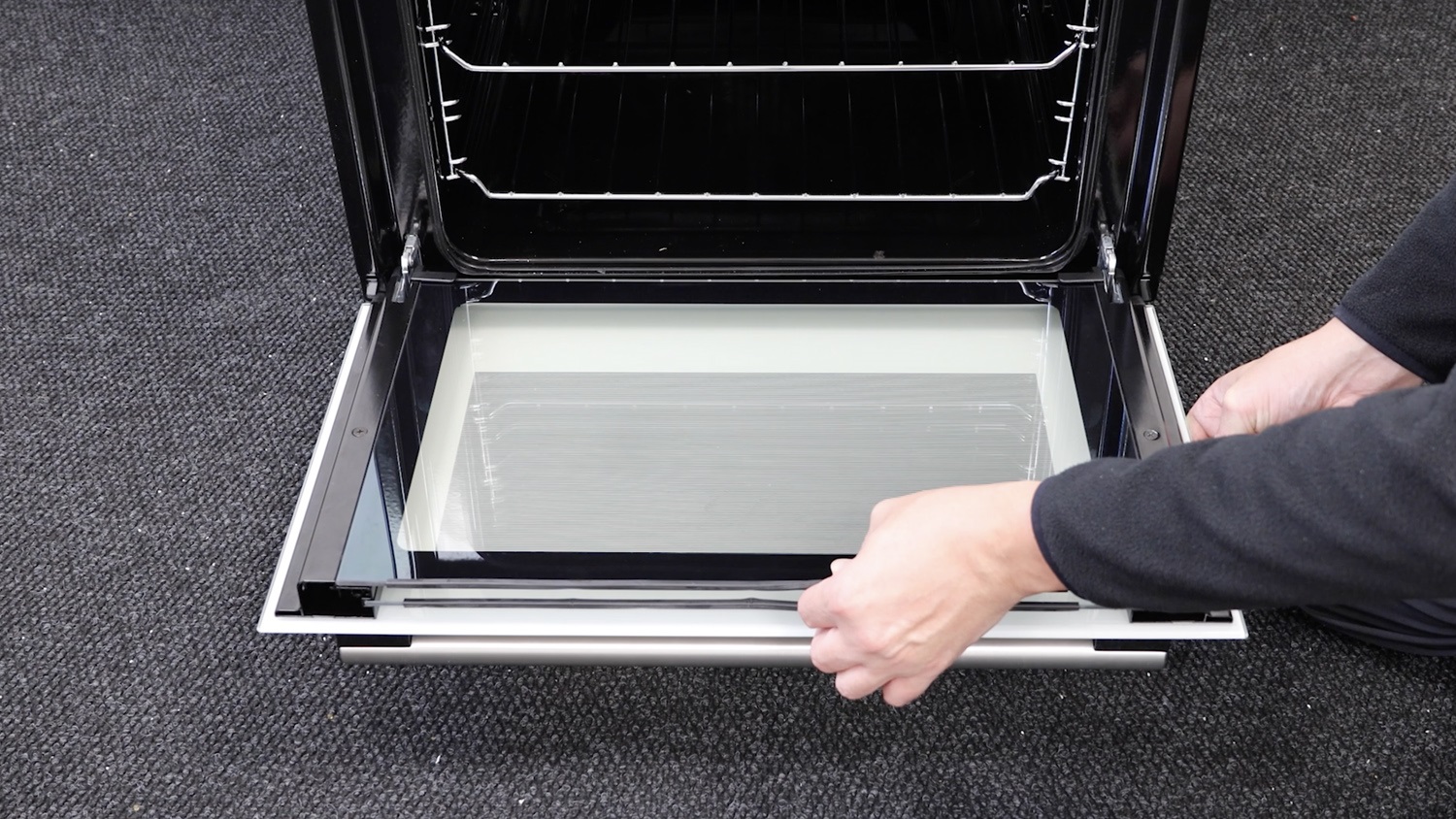

Then, gently slide the new door inner glass into the oven door.
3. Re-assemble top trim

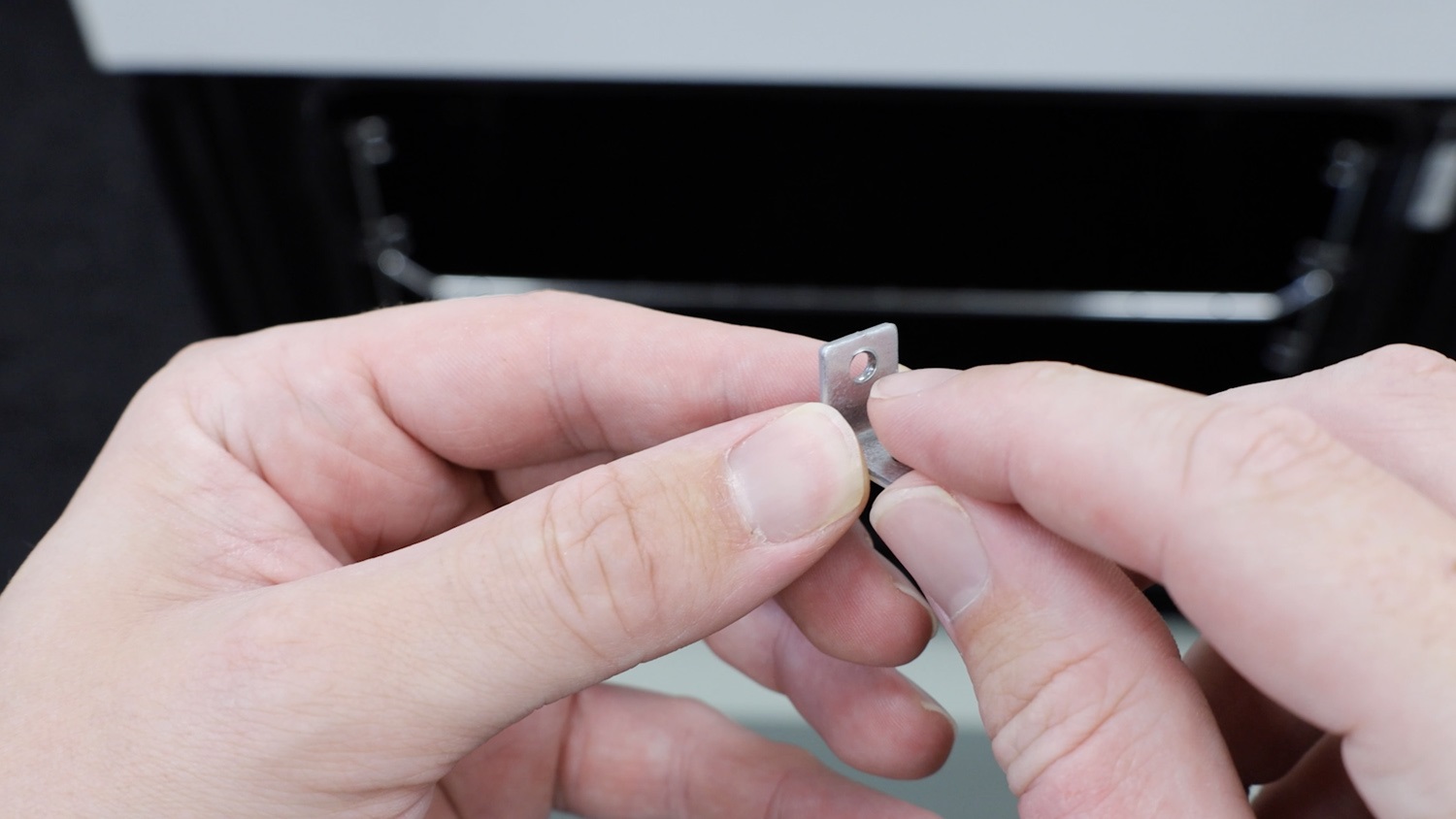

When re-attaching the plastic trim, ensure the seal is correctly on both panes of glass. Make sure the fixing brackets are the correct way around for the screws. The hole that goes into the plastic trim, doesn’t have any thread. The hole that’s left for the screw, does.

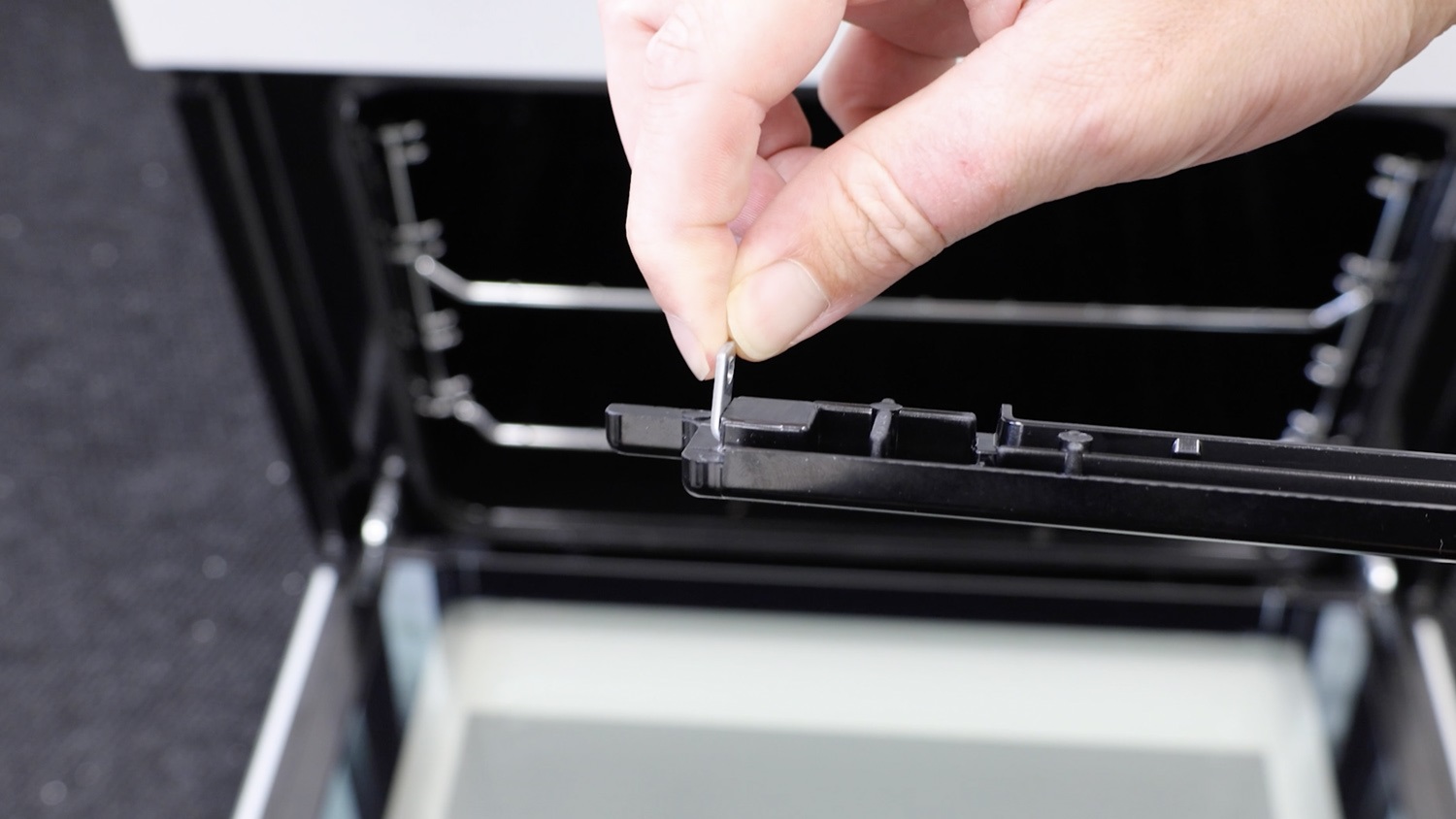

Re-attach the fixing bracket to the top plastic trim.

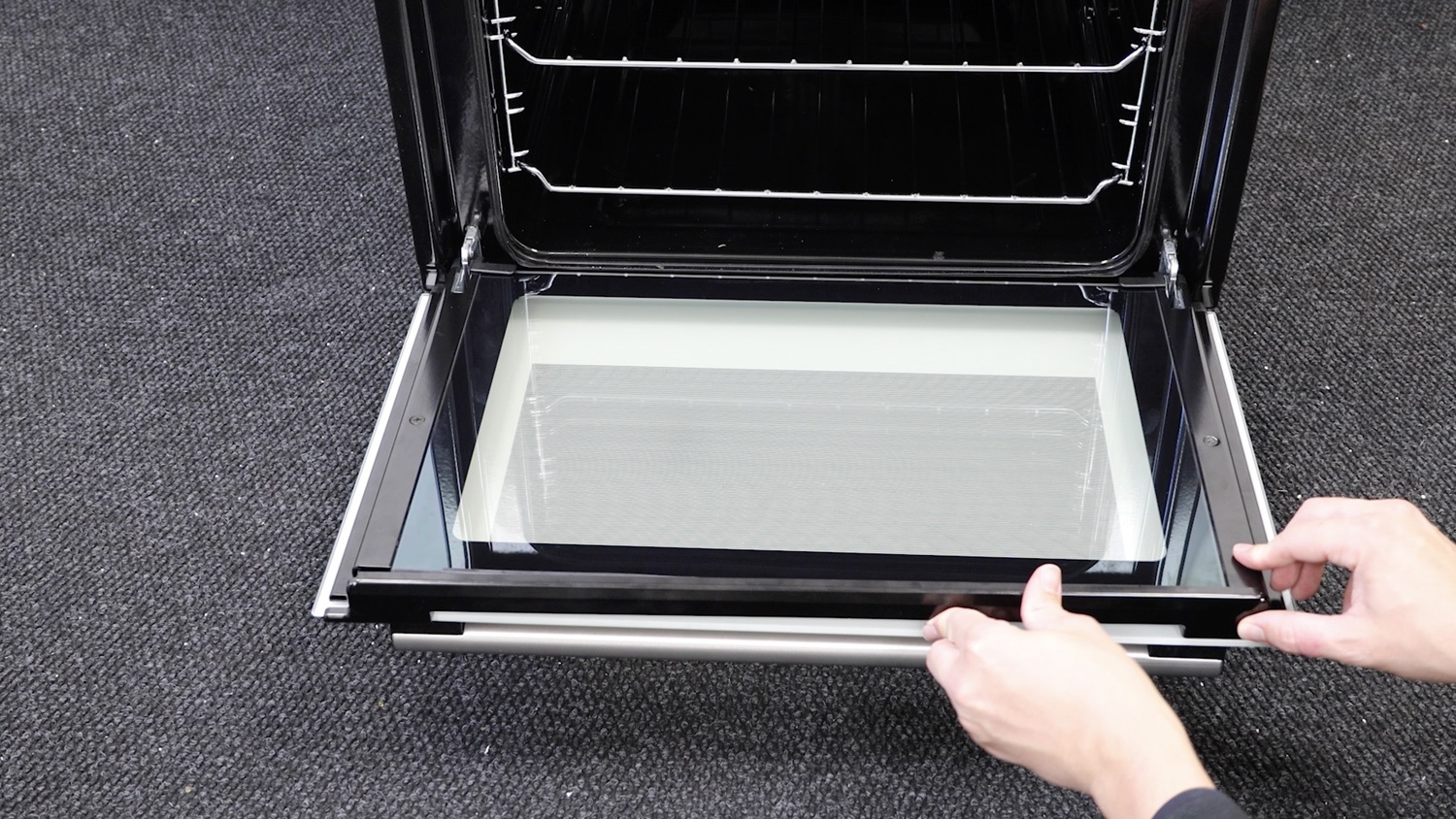

Re-attach the top plastic trim to the oven door.

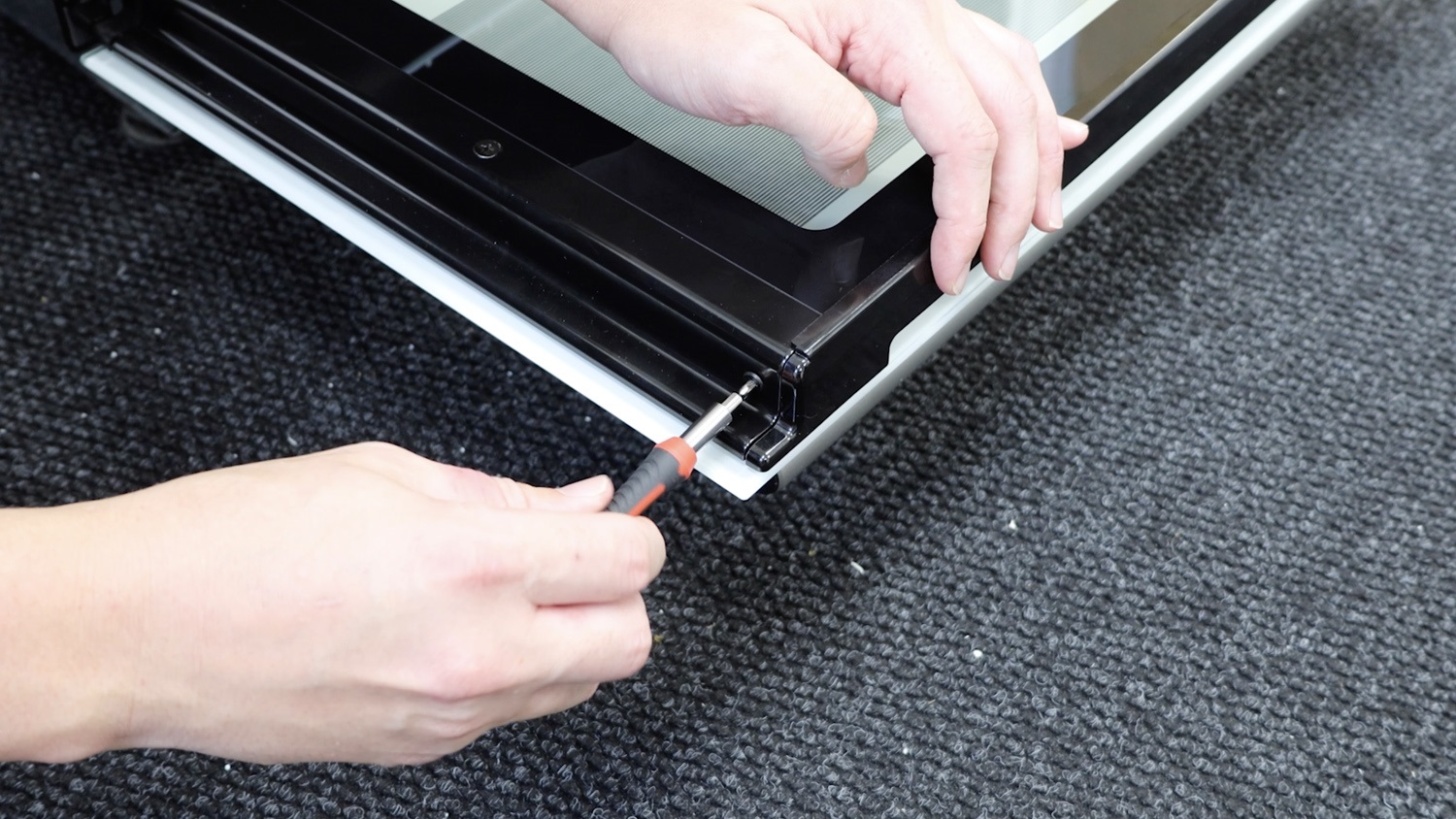

Re-screw the screw on either side of the door.
And that’s it, your new bottom door inner glass is all set to go
